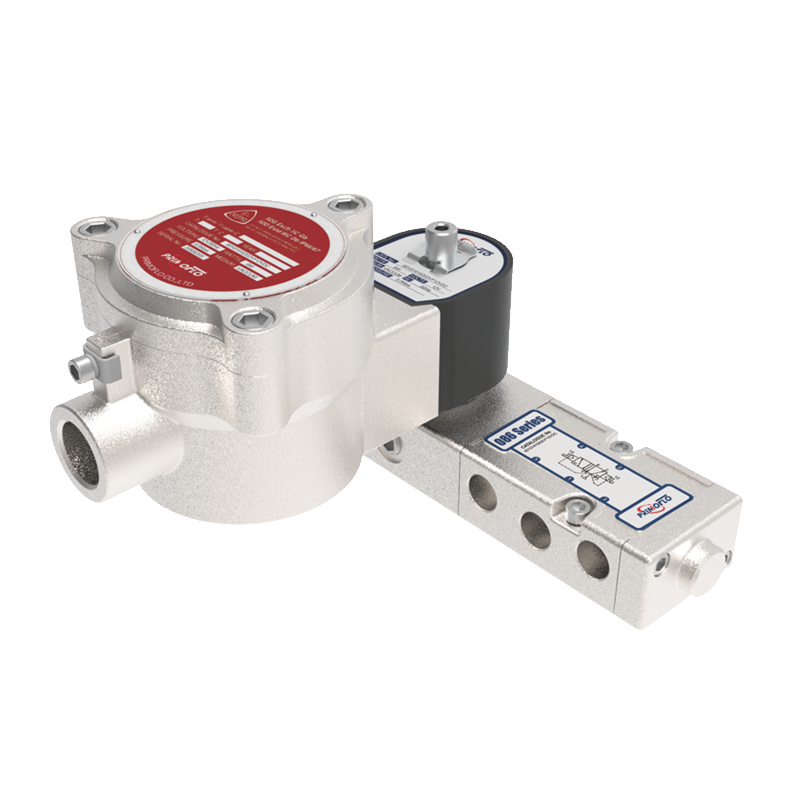

Spool Valve 086 Series TYPE X

086-XX-1
Main Information:
Port SizeNPT 1/4", G 1/4", NPT 1/2", G 1/2", Namur.
OperationPilot Operated
Type3/2 Single Coil
Body MaterialAluminum/ Stainless Steel
Seals MaterialVMQ & LNBR
Operating Pressure Differential29 to 145 psi (2.0 to 10 bar)
Media Temperature-40°F to 149°F (-40°C to 65°C)
Orifice Size9/32 Inch/7.0 (mm) Port Size 1/4”
9/16 Inch/14.0 (mm) Port Size 1/2”
Flow Coefficient1.11Cv(1.06Kv m3/h)Port Size 1/4”
3.85Cv (3.30Kv m3/h) Port Size 1/2”
Voltage24VDC, 110VDC, 24VAC, 220VAC
CoilEx d Junction box with Ex m Coil
MediaAir Filtered, Lubricated or Dry
