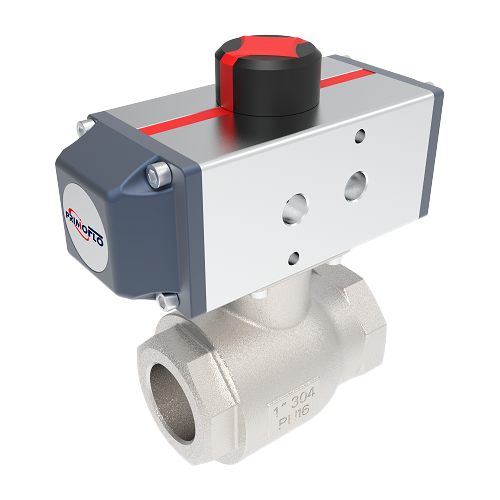

Ball Valve 098 Series

098-XX-32S0
NO VIDEO
Main Information:
Port SizeNPT 3/4", G 3/4", NPT 1", G 1"
OperationPneumatic
Type3/2 Spring Return
Body MaterialStainless Steel
Seals MaterialLNBR/FKM
Operating Pressure Differential43.5 to 116 psi (3 to 8 bar)
Media Temperature-40°F to 302°F (-40°C to 150°C)
Flow Coefficient6Cv (6.9Kv m3/h) Port Size 3/4”
11Cv (12.7Kv m3/h) Port Size 1”
MediaAir, Water, Light Oil
